3D seismic data can play a vital role in hydrocarbon exploration and development especially with regard to mitigating risk associated with presence of reservoir facies. Such data can afford direct imaging of depositional elements, which can then be analyzed by applying seismic stratigraphic and seismic geomorphologic principles to yield predictions of lithologic distribution, insights to compartmentalization, and identification of stratigraphic trapping possibilities. Benefits can be direct, whereby depositional elements at exploration depths can be identified and interpreted, or they can be indirect, whereby shallow-buried depositional systems can be clearly imaged and provide analogs to deeper exploration or development targets.

Examples of imaged depositional elements from both shallow- and deeply-buried sections are presented. In addition, depositional settings ranging from non-marine to deep-marine clastic a well as carbonate environments will be shown (Figs. 1-5).

Common techniques for geologic visualization include

  1. visualizing stratigraphic horizons,
  2. time slicing and flattened time slicing,
  3. interval attribute analysis (including seismic waveform analysis),
  4. voxbody interpretation and mapping,
  5. 3D perspective rendering, and
  6. opacity rendering.
Fig. 01

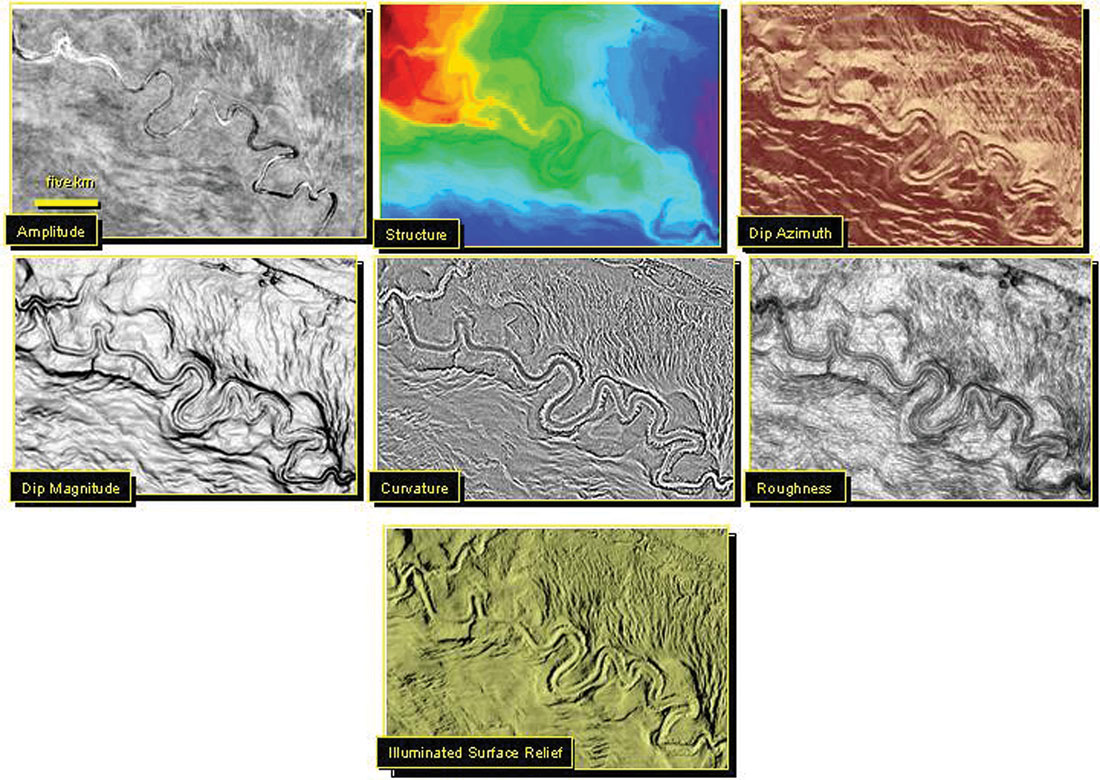

Figure 1. Multiple realizations of the same seismic horizon. This horizon illustrates various aspects of a deep-water meandering channel from the Gulf of Mexico. Each seismic attribute brings to light different details of this depositional setting.
Fig. 02

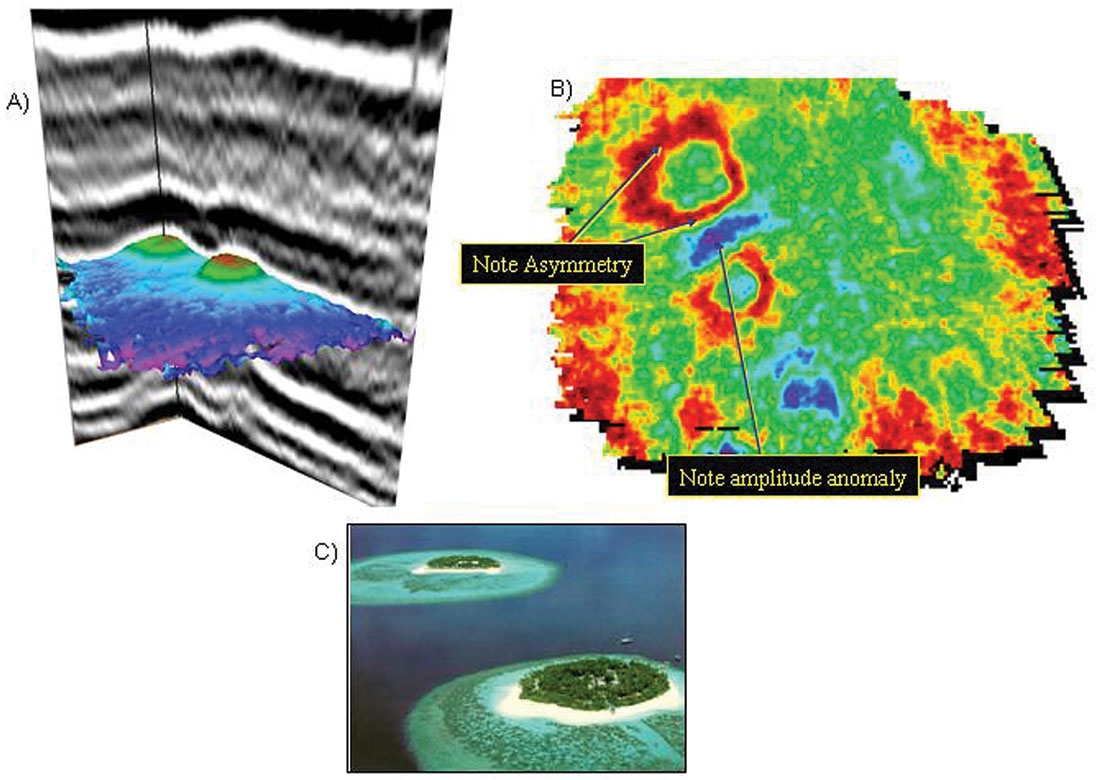

Figure 2. Devonian patch reefs, western Canada sedimentary basin. A) seismic section with perspective view of time structure map draped on the top reef reflection. B) Interval attribute (maximum positive polarity) of the section that contains the reef, illustrating facies asymmetry associated with prevailing winds, and likely deepening between the reefs associated with tidal current focusing. C) Modern analog of small patch reefs from the Maldives.
Fig. 03

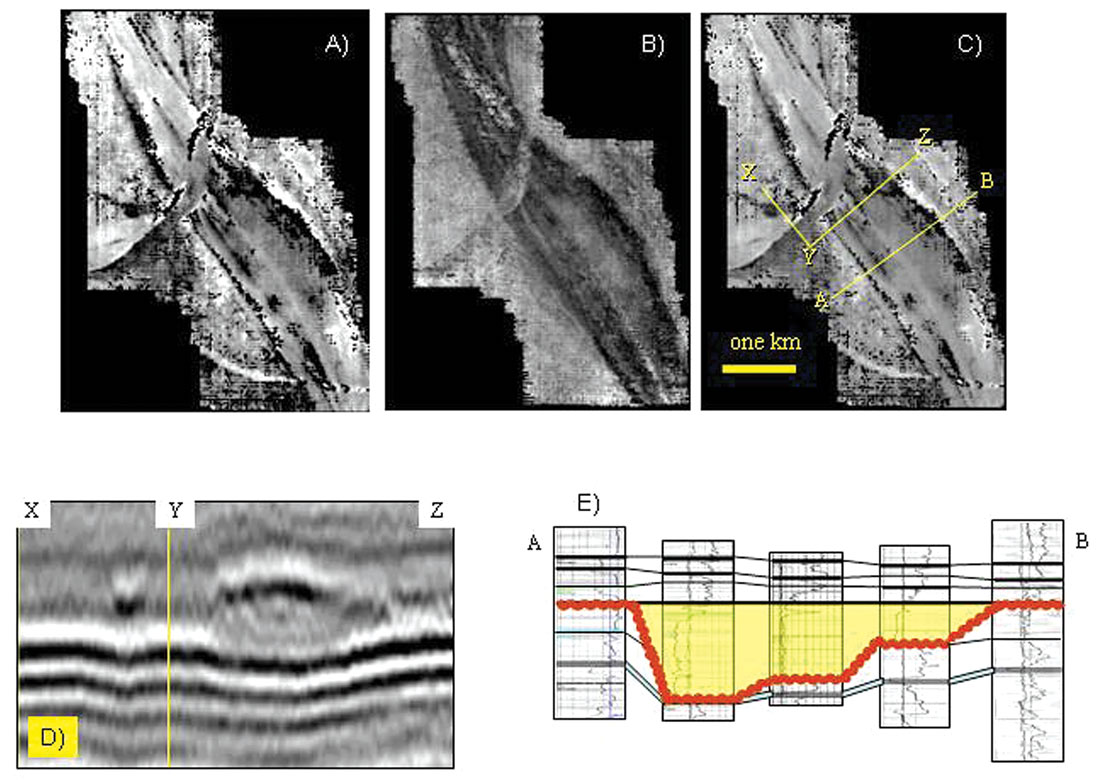

Figure 3. Cretaceous distributary channel, western Canada sedimentary basin. Three seismic attributes are shown: A) Near-reflection geometry interval attribute, B) Horizon slice reflection amplitude, and C) Maximum positive polarity interval attribute. Vertical seismic section is shown in B. C) Well-log cross section across distributary channel
Fig. 04

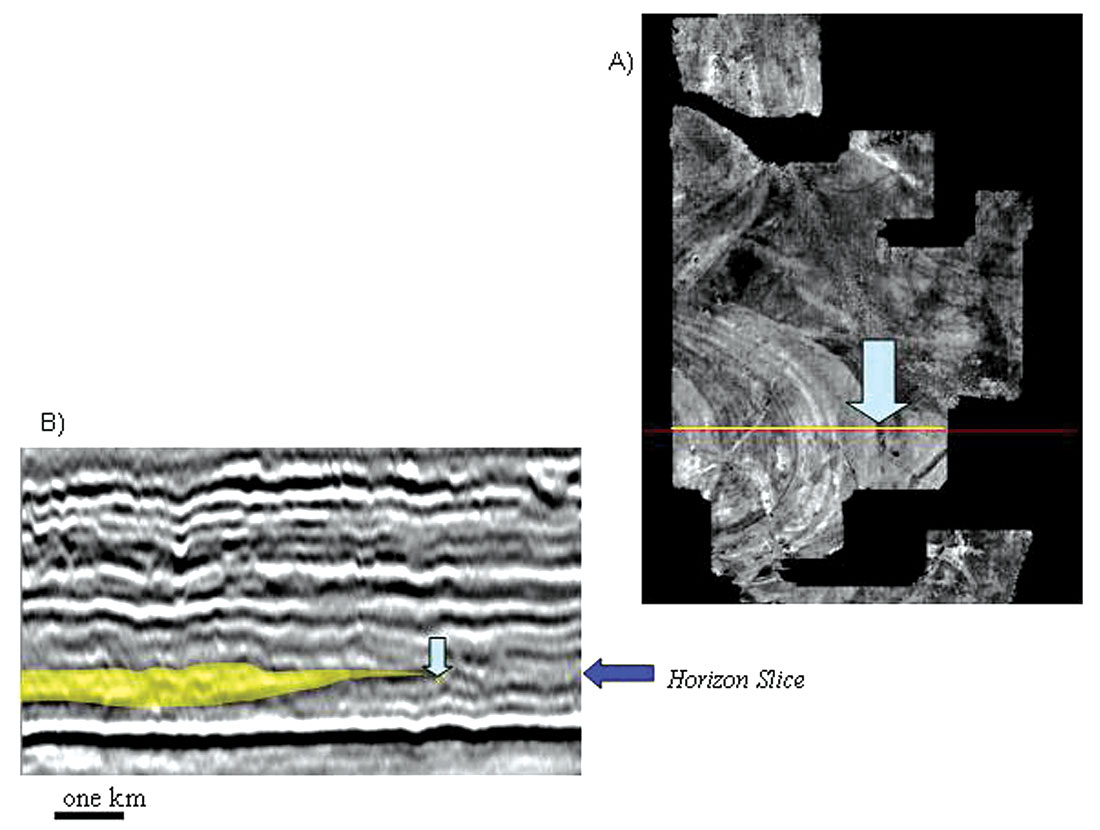

Figure 4. Cretaceous high-sinuosity fluvial channel, western Canada sedimentary basin. A) horizon slice amplitude extraction showing fluvial point bar deposits. B) Seismic cross section with fluvial channel deposits highlighted.
Fig. 05

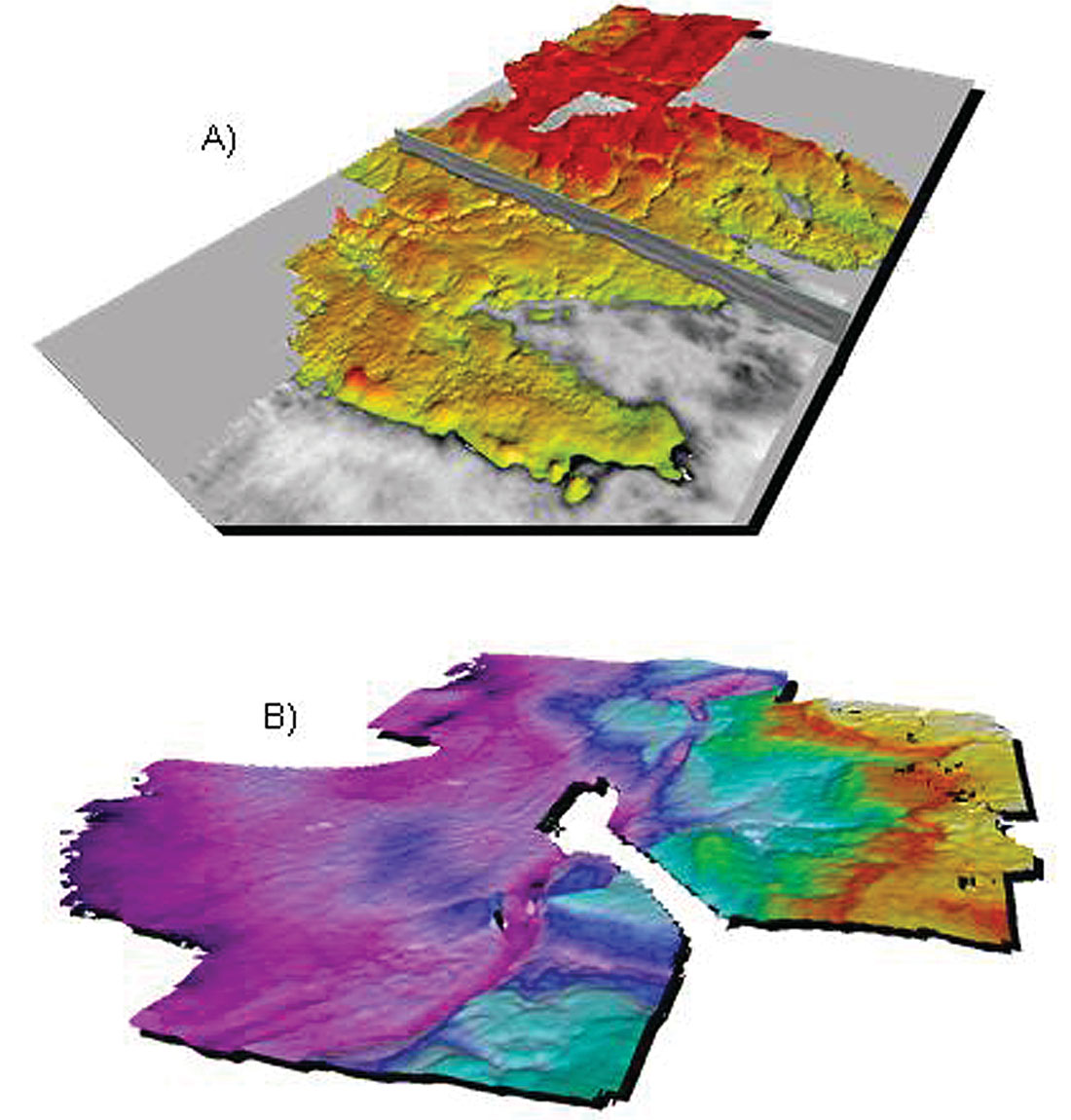

Figure 5. A) Small fluvial channel, Devonian, western Canada sedimentary basin. Perspective view with time structure draped onto the horizon. B) Time structure mapped onto base Cretaceous unconformity, characterized by fluvial channels incised into Devonian carbonates.
