Shale resources characterization has gained attention in the last decade or so, after the Mississippian Barnett shale was successfully developed with the application of hydraulic fracing and horizontal drilling. For characterization of shale gas formations different workflows using 3D surface seismic data have been introduced. We propose an integrated workflow for the characterization of the Montney shale formation, one of the largest and economically viable resource plays in North America. We also compare results to those that were obtained by an existing workflow described elsewhere.


Shale-gas plays differ from conventional gas plays in that the shale formations are both the source rocks and the reservoir rocks. There is no migration of gas as the very low permeability of the rock causes the rock to trap the gas and it forms its own seal. The gas can be held in natural fractures or pore space, or can be absorbed onto the organic material (Curtis, 2002). Apart from permeability, total organic content (TOC) and thermal maturity are the key properties of potential gas shales. Generally, it can be stated that the higher the TOC, the better the potential for hydrocarbon generation. In addition to these characteristics, thickness, gas-in-place, mineralogy, brittleness, pore space and the depth of the shale gas formation are other characteristics that need to be considered for a shale gas reservoir to become a successful shale gas play. The organic content in these shales, which are measured by their TOC ratings, influence the compressional and shear velocities as well as the density and anisotropy in these formations. Consequently, it should be possible to detect changes in TOC from the surface seismic response.

The method

Passey et al. (1990) proposed a technique for estimating TOC in shale gas formations. Basically, this technique is based on the porosity-resistivity overlay to indicate hydrocarbon bearing shale pockets. Usually, a sonic log is used as the porosity indicator. In this technique, the transit time curve and the resistivity curves are scaled in such a way that the sonic curve overlays the resistivity curve over a large depth range, except for organic-rich intervals where they would show crossover between themselves.

TOC changes in shale formations influence VP, VS, density and anisotropy and thus should be detected on the seismic response. To detect it, different workflows have been discussed by Chopra et al. (2012).

Rickman et al. (2008) showed that the brittleness of a rock formation can be estimated from the computed Poisson’s ratio and Young’s modulus well log curves. This suggests a workflow for estimating brittleness from 3D seismic data, by way of simultaneous pre-stack inversion that yields IP, IS, VP /VS, Poisson’s ratio, and in some cases meaningful estimates of density. Zones with high Young’s modulus (E) and low Poisson’s ratio (ρ) are those that would be brittle as well as have better reservoir quality (higher TOC, higher porosity). Such a workflow works well for good quality data and is shown in Figure 1.

Fig. 01

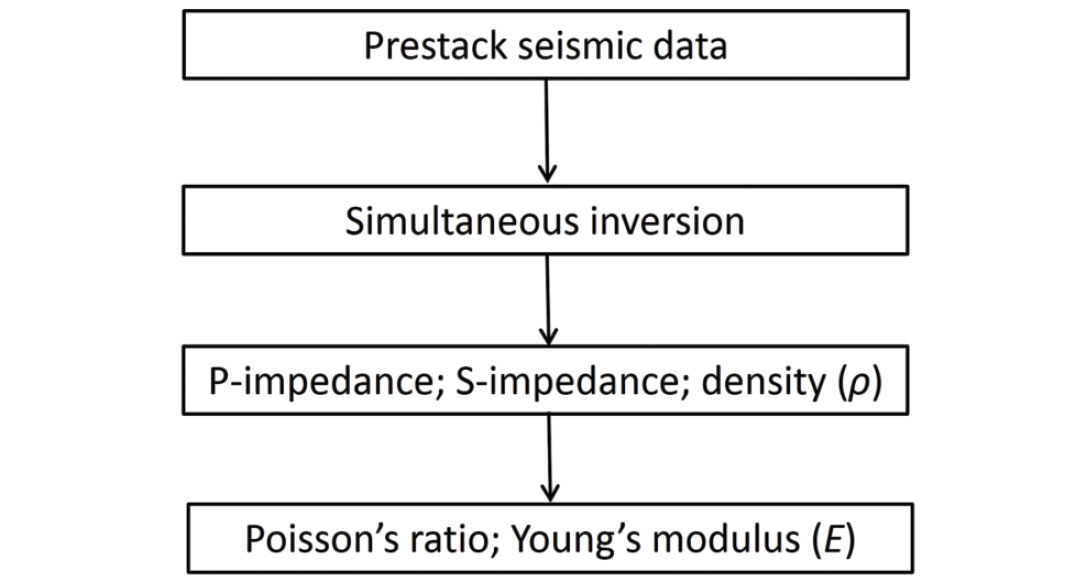

Figure 1. Rickman et al. (2008) workflow for characterizing shale gas formation.

We propose an integrated work flow in which the well data as well as seismic data are used to characterize the hydrocarbon bearing shale as shown in Figure 2. We begin with the generation of different attributes from the well-log curves. Then, using the cross-plots of these attributes we try and identify the hydrocarbon bearing shale zones. Once this analysis is done at the well locations, seismic data analysis is used for computing appropriate attributes. Seismically, pre-stack data is essentially the starting point. After generating angle gathers from the conditioned offset gathers, Fatti’s equation (Fatti et al. 1994) can be used to compute P-reflectivity, S-reflectivity, and density which depends on the quality of input data as well as the presence of long offsets. Due to the band-limited nature of acquired seismic data, any attribute extracted from it will also be bandlimited, and so will have a limited resolution. While shale formations may be thick, some high TOC shale units may be thin. So, it is desirable to enhance the resolution of the seismic data. An appropriate way of doing it is the thin-bed reflectivity inversion (Chopra et al. 2006; Puryear and Castagna, 2008). Following this process, the wavelet effect is removed from the data and the output of the inversion process can be viewed as spectrally broadened seismic data, retrieved in the form of broadband reflectivity data that can be filtered back to any bandwidth. This usually represents useful information for interpretation purposes. Thin-bed reflectivity serves to provide the reflection character that can be studied, by convolving the reflectivity with a wavelet of a known frequency band-pass. This not only provides an opportunity to study reflection character associated with features of interest, but also serves to confirm its close match with the original data. Further, the output of thin-bed inversion is considered as input for the model based inversion to compute P-impedance, S-impedance and density. Once impedances are obtained, we can compute other relevant attributes, such as Lambda-rho (λρ), Mu-rho (μρ) and VP /VS. These are used to estimate the pore space properties and information about the rock skeleton. Young’s modulus can be treated as a brittleness indicator and Poisson’s ratio as TOC indicator.

Fig. 02

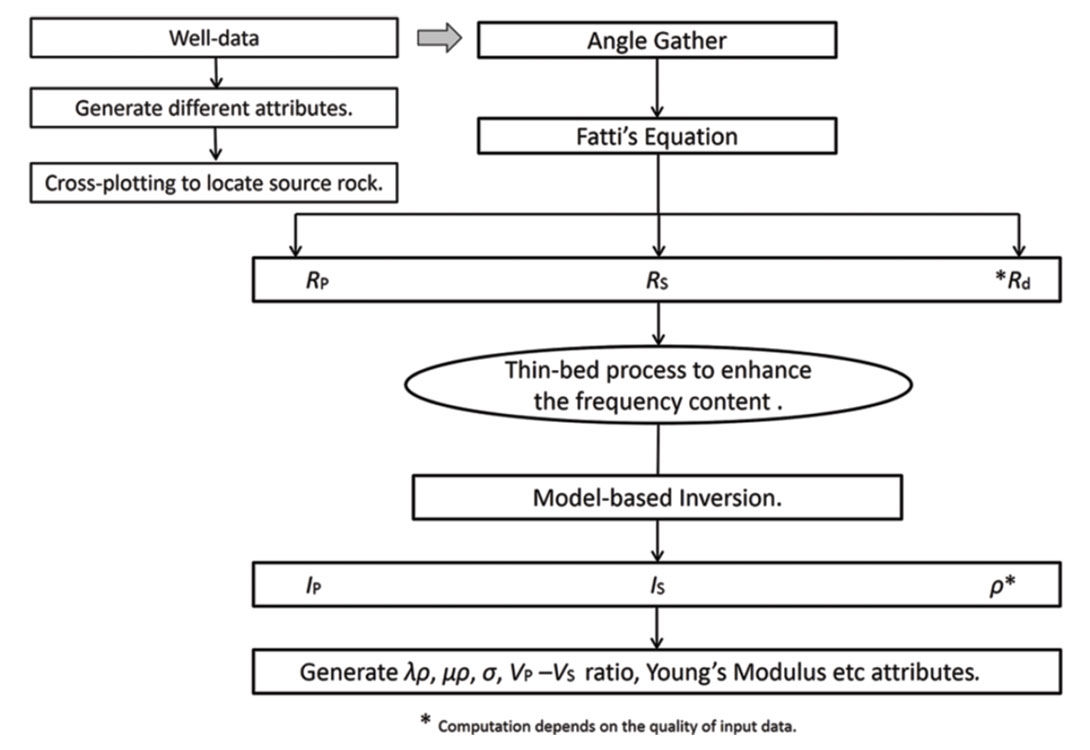

Figure 2. Proposed integrated workflow for characterizing the unconventional reservoirs using conventional tools.


The Montney play is one of the active natural gas plays in North America. It is a thick, regionally charged formation of unconventional tight gas/shale distributed in an area extending from north central Alberta to the northwest of Fort St. John in British Columbia. The Montney play covers approximately 3.8 million acres in the South Peace region and includes major facies of fine grained shoreface, shelf siltstone to shale, fine-grained sandstone turbidities, and organic rich phosphatic shale. The primary focus is on the Upper and Lower Montney for horizontal drilling.

Fig. 03a Fig. 03b Fig. 03c Fig. 03d

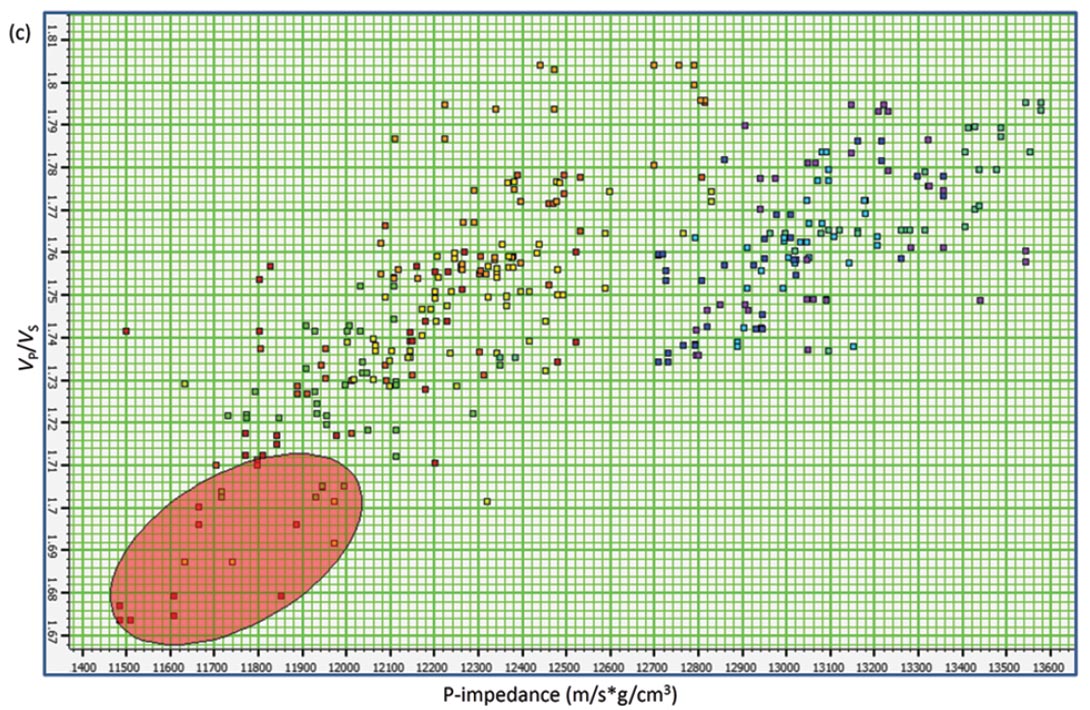

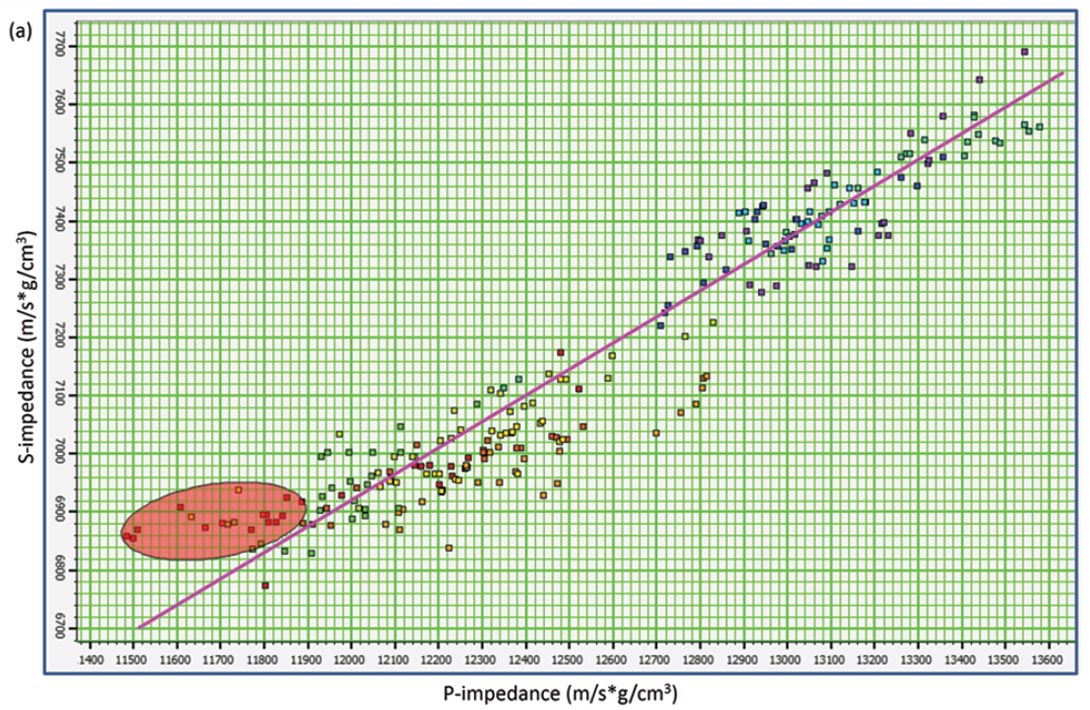

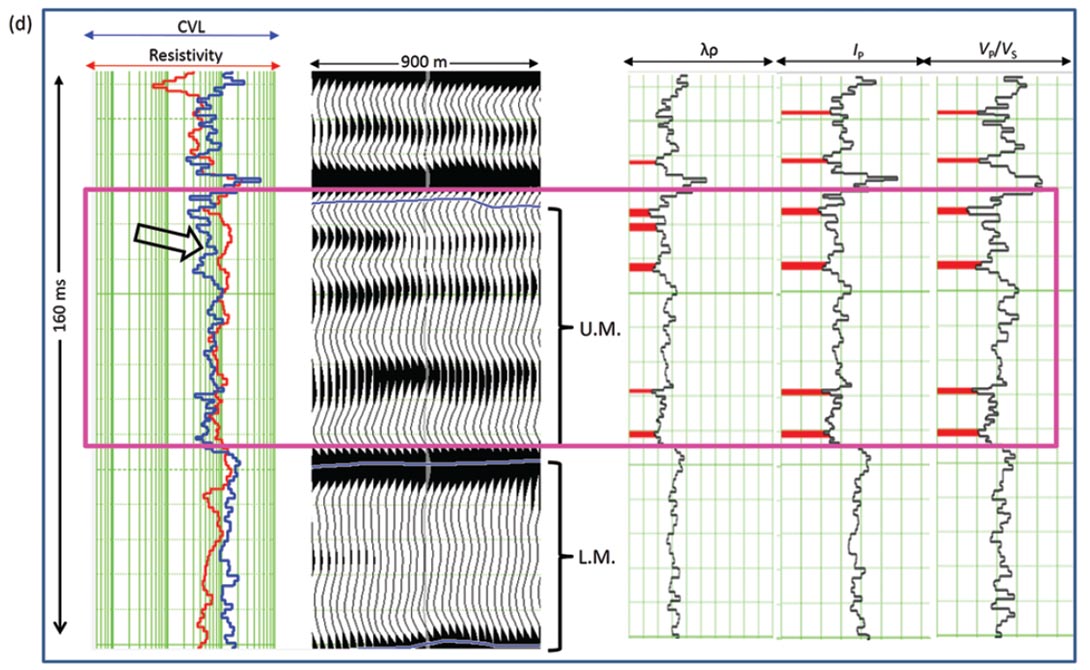

Figure 3 (left). Cross-plotting of (a) IP-IS (b) lλρ-μρ, (c) IP-VP /VS (d) On the left, resistivity and sonic curves are overlaid according to Passey et al., (1990) method and show the crossover in the Upper-Monteny (U.M) Formation. Red polygons on the cross-plots show the anomalous zone and their back projection is shown on the right track of Figure d.

In order to characterize the Montney Formation, we begin with the Passey’s method and overlay the resistivity and sonic curves covering the Montney formation, as shown on the left track of Figure 3(d). The cross-over between these curves is noticed in the Upper Montney (UM) formation. As the resistivity volume cannot be extracted from the seismic, it is desirable to explore the seismically derived attributes that can be used to characterize the shale gas formation. To work towards this goal, cross-plots of pairs of different relevant attributes are undertaken. The commonly considered attributes are IP-IS, λρ-μρ and IP-VP /VS ratio, which are shown in Figures 3(a), 3(b) and 3(c), respectively. The points enclosed by the red polygons on the cross-plots show the characteristics of the hydrocarbon bearing zone. The back projection of the red polygons onto the log curves helps us understand where these points are coming from, as shown in the right track of Figure 3(d). It is noticed here that the anomalous points are coming from the Upper Montney, thus showing consistency with the interpretation of the Passey et al. (1990) method. Moreover, it shows that the characterization of unconventional reservoirs can be carried out using conventional tools.

Fig. 04

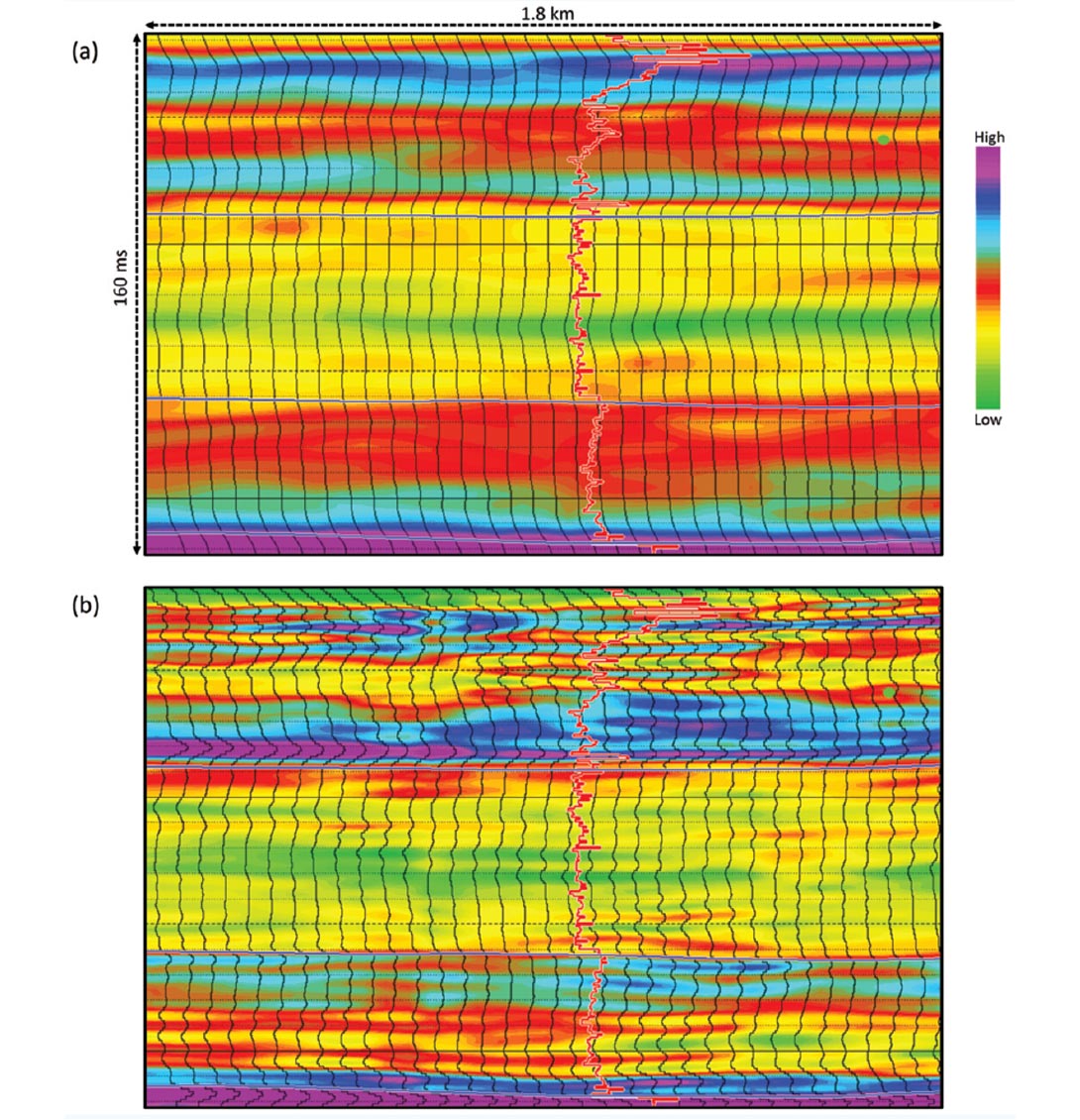

Figure 4. Lambda-rho (λρ) section computed (a) using Rickman et al. (2008) workflow (b) using the proposed workflow. Notice the higher resolution, more detailed information and its correlation with the well data.

Following the workflow shown in Figure 2, we compute different attributes from the seismic data. Figure 4(a) shows the lr section computed using the Rickman et al. (2008) workflow, while the same section computed using the proposed workflow is shown in Figure 4(b). Notice the higher resolution in the latter display. The cross-plotting of the lr and mr attributes is usually used to delineate the hydrocarbon bearing shale pockets. Figures 5(a) and 5(b) show this cross-plotting for both the workflows mentioned above. A red polygon is drawn on the cross-plots to highlight the points that have characteristics of hydrocarbon bearing zones. It is noticed that the anomalous zones show greater separation on Figure 5(b). The back projection of the red polygon drawn on these figures on the seismic section is shown in Figures 6(a) and 6(b), respectively. While a broad red paint-brush pattern is seen in the former, more detailed information can be seen on Figure 6(b).

Fig. 05a Fig. 05b

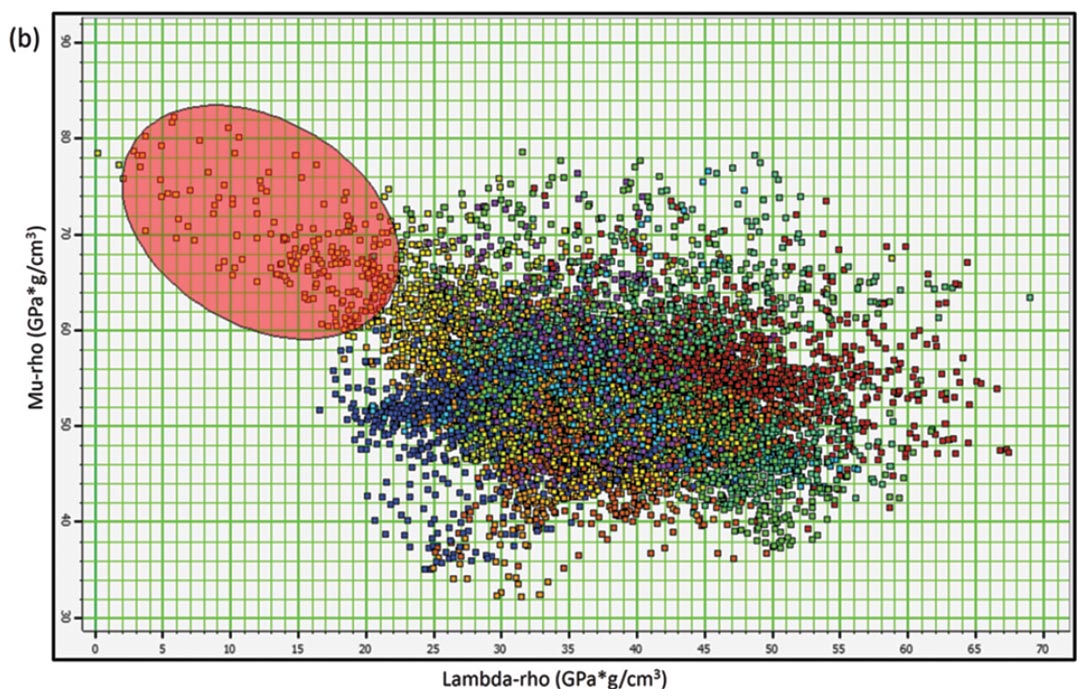

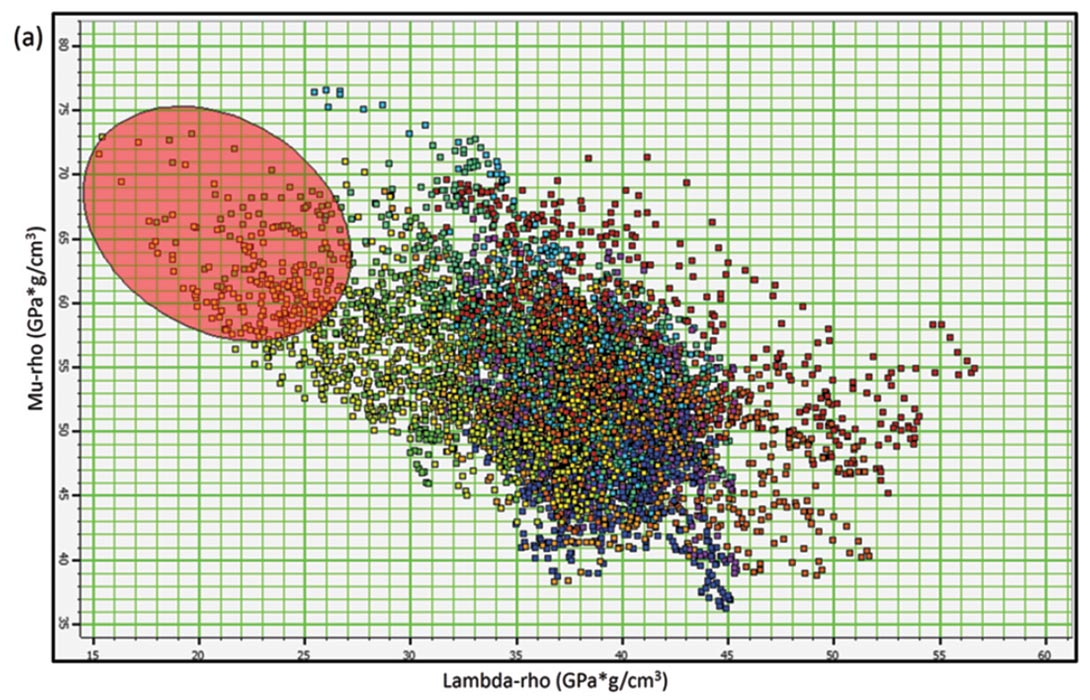

Figure 5. Lambda-rho – Mu-rho (λρ - μρ) crossplot computed (a) using Rickman et al. (2008) workflow, (b) using proposed workflow. The anomalous points enclosed by red polygon show more separation here on the latter.
Fig. 06a Fig. 06b

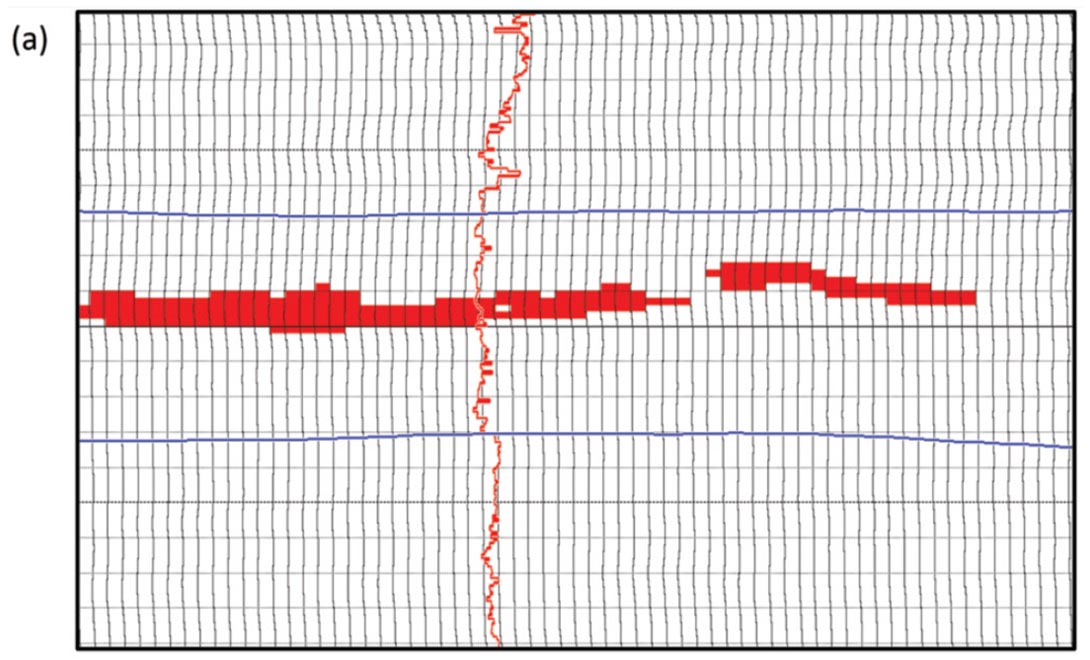

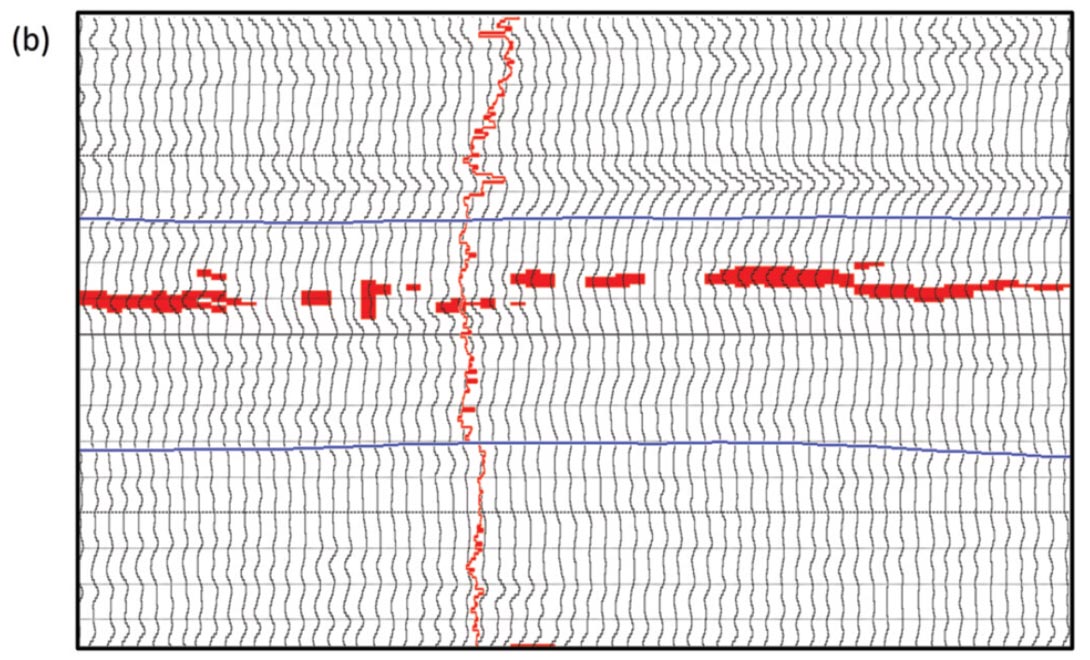

Figure 6. (a) Back projection of the points enclosed by the red polygon drawn on Figure 5(a) and (b) on Figure 5b on seismic section respectively.

Shale source rocks must exhibit high brittleness (as they should then frac better) and low Poisson’s ratio, and so we generate a cross-plot of these two attributes as shown in Figure 7(a). We show the brittleness increasing in the direction of the arrow. Ductile shale is expected to have low Young’s modulus and high Poisson’s ratio, while brittle shale shows the reverse behavior. Thus, blue and red polygons are drawn corresponding to ductile and brittle rock, respectively. The back projection of both polygons on the seismic section is shown in Figure 7(b). Hydrocarbon bearing and brittle shale is noticed in the Upper Montney formation. The horizon slices of Young’s modulus (E) and Poisson’s ration (σ) are shown in Figures 8(a) and 8(b), respectively. Brittle and hydrocarbon bearing shale is mapped by black polygons.

Fig. 07

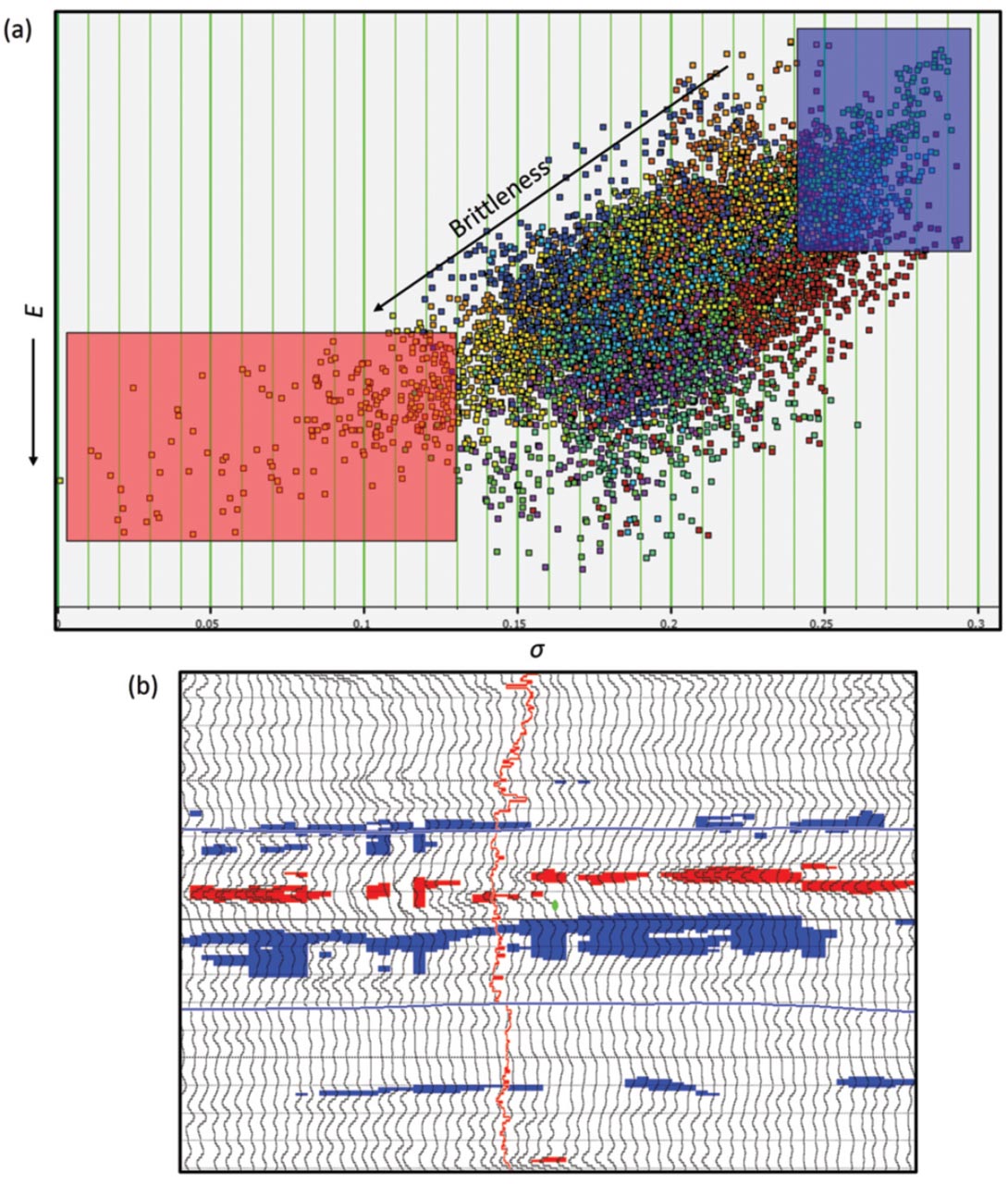

Figure 7 (left). (a) Cross-plot of Young’s modulus and Poisson’s ratio attributes derived from seismic data. Brittleness increases in the direction of arrow. Blue and red polygons are drawn corresponding to ductile and brittle rock, respectively. (b) The back projection of both polygons on the seismic section. Brittle shale is noticed in the Upper Montney formation.
Fig. 08a Fig. 08b

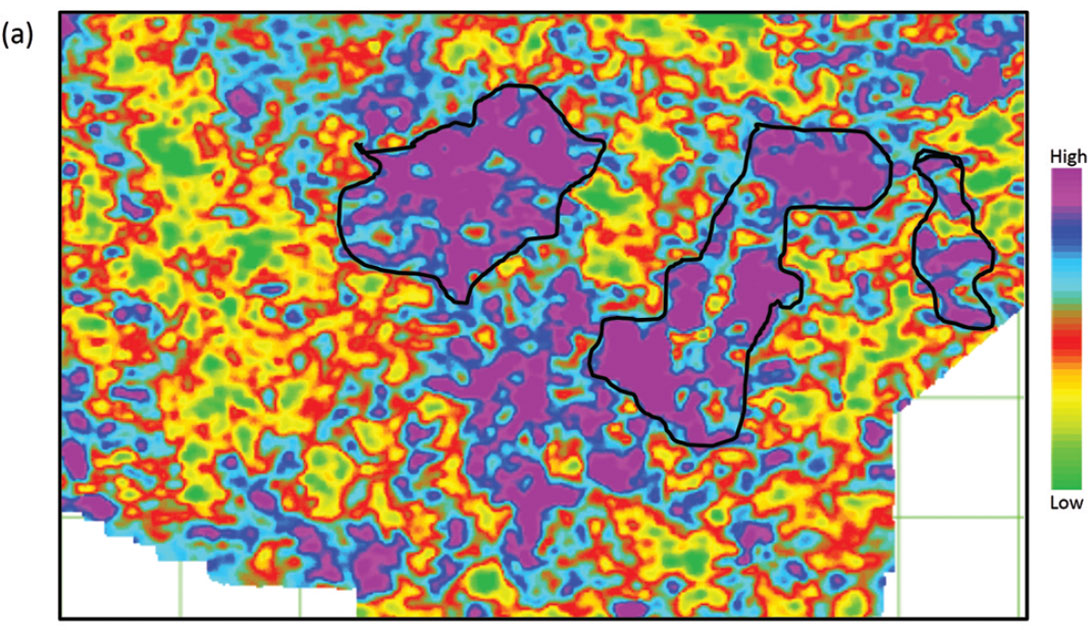

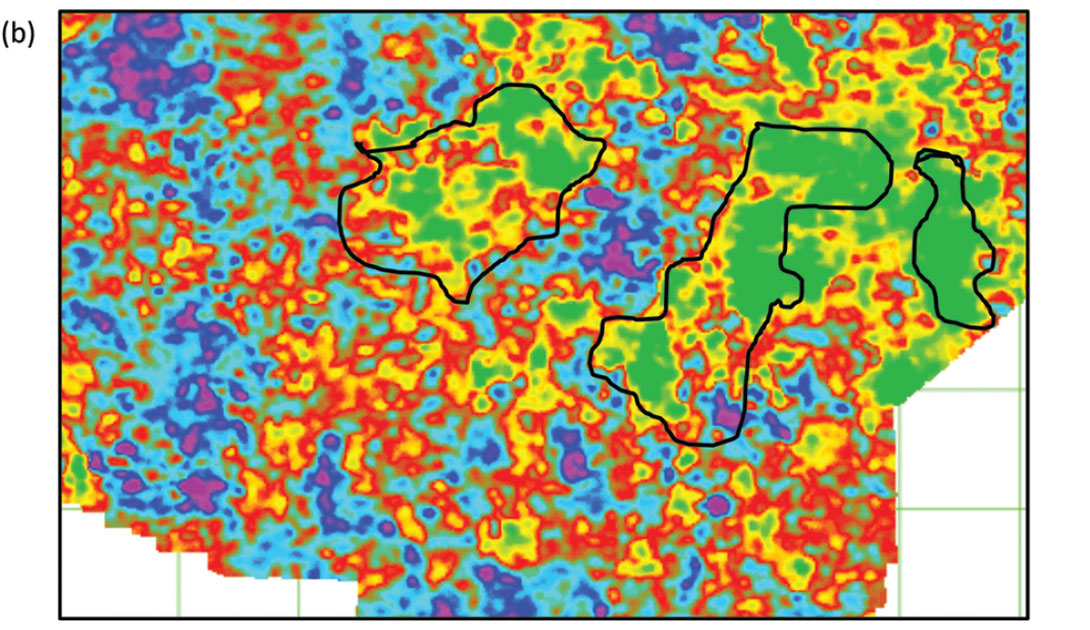

Figure 8. Horizon slices from (a) Young’s modulus and (b) Poisson’s ratio derived from the seismic data. Brittle and hydrocarbon bearing shale is mapped by black polygons.


Following the Passey et al. (1990) method, it was noticed that the Upper Montney shows the characteristics of a source rock. Using our proposed workflow we demonstrate that seismically derived attributes can be used to characterize the Montney formation directly. On comparison, the derived attributes using the proposed workflow are seen to delineate the Montney Formation better than those of the Rickman et al. (2008) workflow.


We thank Arcis Seismic Solutions, TGS, for allowing us to present this work.



About the Author(s)

Ritesh Kumar Sharma is from a small town in India. He received his B.Sc. degree from C.C.S. University Meerut, India in 2004 and his Master’s in applied geophysics from Indian Institute of Technology, Roorkee, India in 2007. In 2008, he came to Calgary to pursue his studies at the University of Calgary, with CREWES group, and received M.Sc. in geophysics in 2011. Before coming to Calgary, he worked with the Vedanta group, Udaipur, for one year as a geophysicist. He joined Arcis Seismic Solutions in 2011 and is still working there as a reservoir geoscientist. His areas of interest include reservoir characterization, seismic imaging and inversion.

Satinder Chopra received M.Sc. and M.Phil. degrees in physics from Himachal Pradesh University, Shimla, India. He joined the Oil and Natural Gas Corporation Limited (ONGC) of India in 1984 and served there till 1997. In 1998 he joined CTC Pulsonic at Calgary, which later became Scott Pickford and Core Laboratories Reservoir Technologies. Currently, he is working as Chief Geophysicist (Reservoir), at Arcis Corporation, Calgary. In the last 28 years Satinder has worked in regular seismic processing and interactive interpretation, but has spent more time in special processing of seismic data involving seismic attributes including coherence, curvature and texture attributes, seismic inversion, AVO, VSP processing and frequency enhancement of seismic data. His research interests focus on techniques that are aimed at characterization of reservoirs. He has published 8 books and more than 270 papers and abstracts and likes to make presentations at any beckoning opportunity. He is the Editor of the Geophysical Corner in the AAPG Explorer, the past Chief Editor of the CSEG RECORDER, the past member of the SEG ‘The Leading Edge’ Editorial Board, and the Ex-Chairman of the SEG Publications Committee.

He received several awards at ONGC, and more recently has received the AAPG George C. Matson Award for his paper entitled ‘Delineating stratigraphic features via cross-plotting of seismic discontinuity attributes and their volume visualization’, being adjudged as the best oral presentation at the 2010 AAPG Annual Convention held at New Orleans, the ‘Top 10 Paper’ Award for his poster entitled ‘Extracting meaningful information from seismic attributes’, presented at the 2009 AAPG Annual Convention held at Denver, the ‘Best Poster’ Award for his paper entitled ‘Seismic attributes for fault/fracture characterization’, presented at the 2008 SEG Convention held at Las Vegas, the ‘Best Paper’ Award for his paper entitled ‘Curvature and iconic Coherence–Attributes adding value to 3D Seismic Data Interpretation’ presented at the CSEG Technical Luncheon, Calgary, in January 2007 and the 2005 CSEG Meritorious Services Award. He and his colleagues have received the CSEG Best Poster Awards in successive years from 2002 to 2005.

He is a member of SEG, CSEG, CSPG, CHOA (Canadian Heavy Oil Association), EAGE, AAPG, APEGGA (Association of Professional Engineers, Geologists and Geophysicists of Alberta) and TBPG (Texas Board of Professional Geoscientists).


Chopra, S., J. P. Castagna, and O. Portniaguine, 2006, Seismic resolution and thin-bed reflectivity inversion: CSEG RECORDER, 31, 19–25.

Chopra, S., R.K. Sharma, J. Keay and K.J. Marfurt, 2012, Shale gas reservoir characterization work flow: 82nd Annual International Meeting, SEG, Expanded Abstracts,1-4.

Curtis, J. B., 2002, Fractured shale gas systems: AAPG Bulletin, 86, 1921–1938.

Fatti, J. L., P. J. Vail, G. C. Smith, P. J. Strauss, and P. R. Levitt, 1994, Detection of gas in sandstone reservoirs using AVO analysis: A 3D seismic case history using the Geostack technique: Geophysics, 59, 1362–1376.

Passey, Q. R., S. Creaney, J. B. Kulla, F. J. Moretti, and J. D. Stroud, 1990, A practical model for organic richness from porosity and resistivity logs: AAPG Bulletin, 74, 1777–1794.

Puryear, C.I. and Castagna, J.P. [2008] Layer-thickness determination and stratigraphic interpretation using spectral inversion: theory and application. Geophysics, 73, R37-R48.

Rickman, R., M. Mullen, E. Petre, B. Grieser, and D. Kundert, 2008, A practical use of shale petrophysicsfor stimulation design optimization: All shale plays are not clones of the Barnett Shale: Annual Technical Conference and Exhibition, Society of Petroleum Engineers, SPE 11528.
